Low-cost three-channel digital isolator with integrated isolated power DC-DC converter
NIRSP31 is triple-channel digital isolators with integrated isolated DC-DC converter. The isolated DC-DC converter provides stable output voltage and up to 400mW output power by closed-loop control and transformer on chip. The feedback PWM signal is sent to primary side by a digital isolator based on Novosense capacity isolation technology. The high integrated solution can help simplify system design, save PCB area and improve reliability. NIRSP31 supports 3kVrms insulation 1min withstand voltage. The data rate of NIRSP31 is up to 20Mbps, and the common-mode transient immunity (CMTI) is up to ±50kV/us. The NIRSP31 provides 5V to 5V, 5V to 3.3V conversion mode. The output voltage can be set by SEL pin.
Product Features
• Up to 3000Vrms Insulation Voltage
• Power Supply Voltage：4.5V to 5.5V
• Output Supply Current: 80mA for 5V to 5V/3.3V
• Over current and over temperature protection
• Date rate: DC to 20Mbps
• High CMTI: 50kV/us
• Propagation delay: <75ns
• Operation temperature: -40℃~125℃

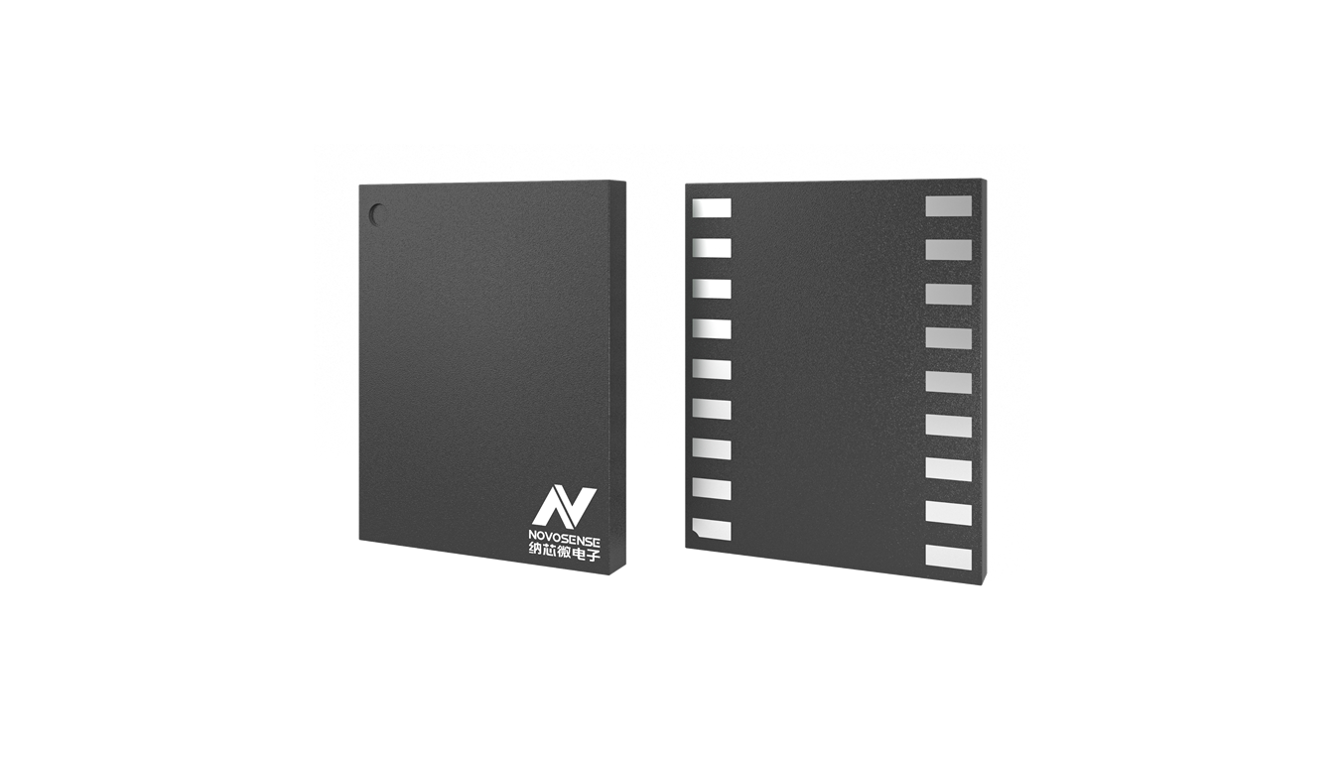

• RoHS-compliant packages: LGA-18
Application
• Industrial BMS System
• Industrial automation system
• solated RS232, RS485, CAN
• General-purpose multichannel isolation
Functional Block Diagram
For more product information, please contact us.
