Automobile-qualified high-reliability four-channel digital isolator
The NSI824x devices are high reliability quad-channel digital isolators. The NSI824x device is safety certified by UL1577 support several insulations withstand voltages (3kVrms, 5kVrms, 8kVrms), while providing high electromagnetic immunity and low emissions at low power consumption. The data rate of the NSI824x is up to 150Mbps, and the common-mode transient immunity (CMTI) is up to 250kV/μs. The NSI824x device provides digital channel direction configuration and the default output level configuration when the input power is lost. Wide supply voltage of the NSI824x device supports to connect with most digital interface directly, easy to do the level shift. High system level EMC performance enhance reliability and stability of use. AEC-Q100 (Grade 1) option is provided for all devices.
Product Features
• Up to 8000Vrms insulation voltage
• VDE Reinforced Isolation Qualification
• Data rate DC of up to 150Mbps
• High CMTI: ±250kV/μs
• Chip-level ESD: HBM: ±8kV
• Enhanced ESD, EFT, surge protection at system level
• Low propagation delay typical <15ns
• Low power consumption: 1.5mA/ch (1 Mbps)
• Operation temperature: -40℃~125℃
• AEC-Q100 qualified
• RoHS compliant package: SOP16(300mil), SSOP16, SOP16(600mil)
Safety Certificate
• UL1577 qualified: 8kVrms for 1 min.
• CQC qualified: Conform to GB4943.1-2022
• CSA qualified: Components conform to 5A
• VDE qualified: DIN EN IEC 60747-17 (VDE 0884-17)
Application
• New energy vehicles
• Industrial automation system
• Isolated SPI, RS232, RS485
• Universal Multi-Channel Isolator
• Motor control

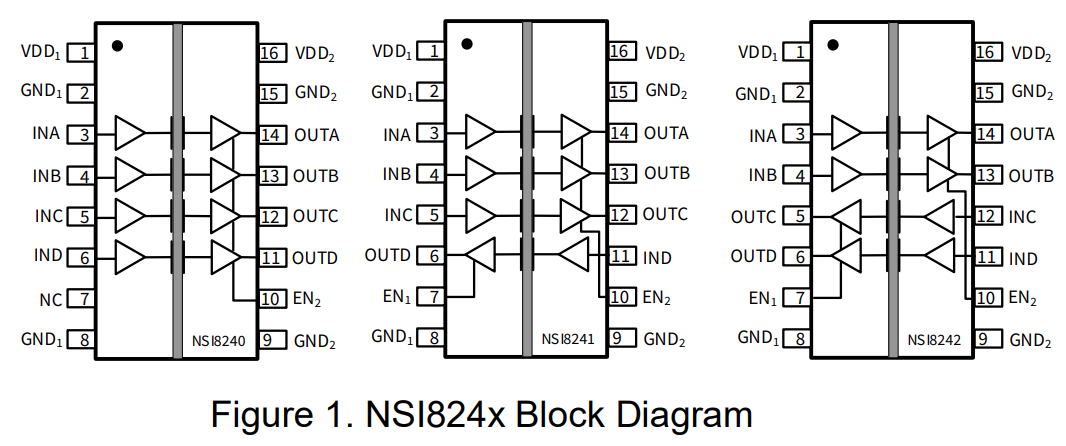

Functional Block Diagram
