MT6501：Magnetically encoded chips - in-line programming of angular position ICs

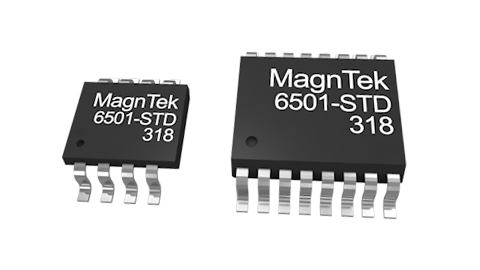

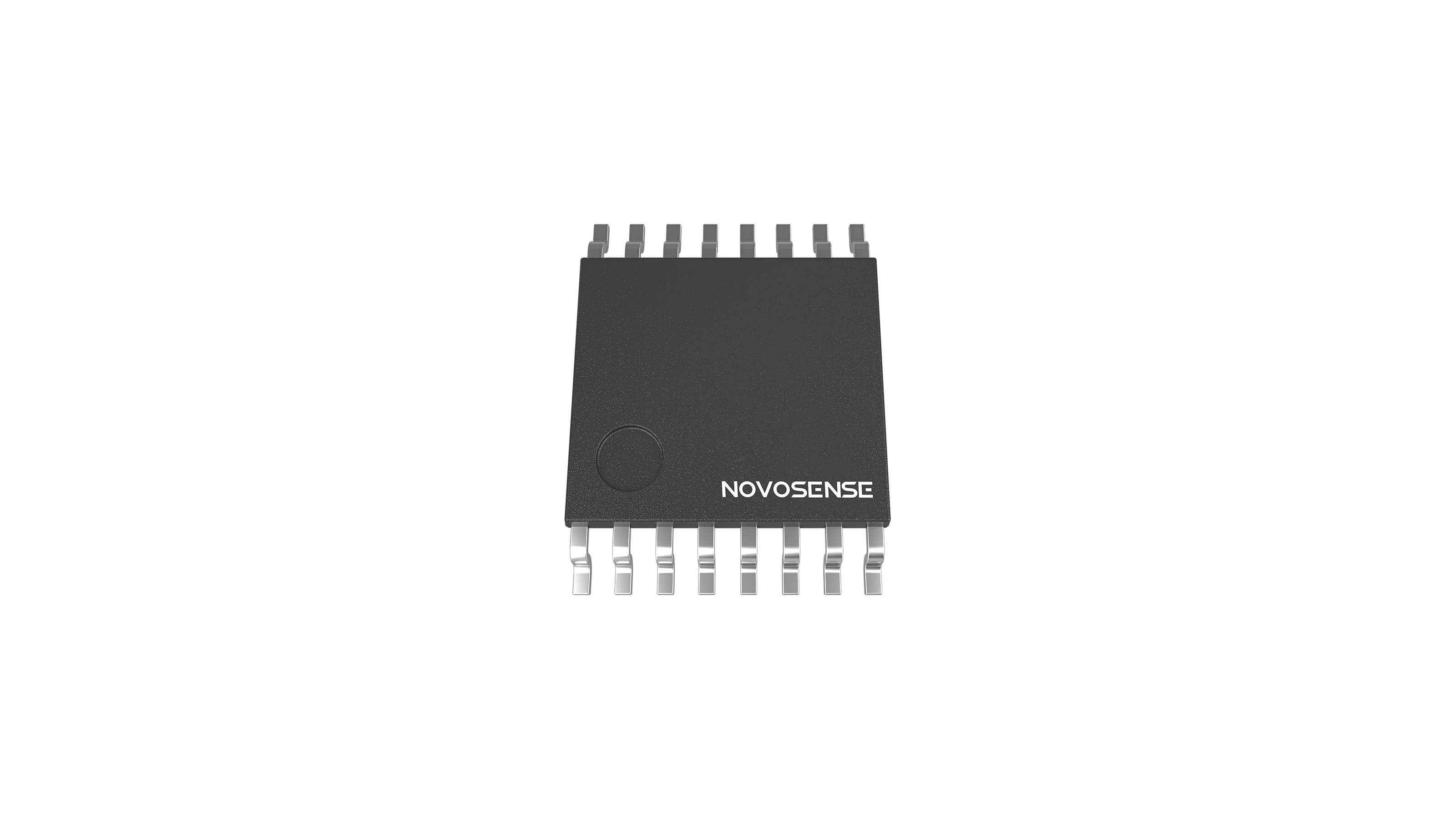

MagnTek's MT6501 is a rotational angle sensor chip based on anisotropic magnetoresistive (AMR) technology. The chip consists of a pair of AMR Wheatstone bridges and signal processing ASIC circuits, and as the magnetic field parallel to the surface of the chip rotates, the chip outputs a corresponding angular signal. Compared with traditional Hall sensors, AMR angle sensors are easier for customers to install because they operate in the saturation zone, which reduces the magnetic field requirements. In addition to a single SOP-8 package, the MT6501 is also available in a dual TSSOP-16 package, making it widely suitable for automotive throttle, EGR valve, accelerator pedal control, and other applications that require dual-channel redundancy.
Product Features
• Principle of magnetic induction：AMR
• Working voltage (V)：4.5~5.5
• Working temperature (℃)：-40~150
• Automotive level certification：Yes
• ISO26262：No
• Output overvoltage protection：18V
• Redundant design packaging：Yes
• Simulated output curve programming：4-Points Programmable
• PWM output：Yes
• Digital interface：SPI
• ABZ incremental output：No
• UVW incremental output：No
• Angle accuracy：<±1.5°
• Packaging：SOP-8,TSSOP-16
Design and development
For more product information, please contact us.
