The MT72XX series features BCD technology for high performance and reliability. Hall ICs have an integrated LDO that operates from a supply voltage of 2.8 V to 26 V, and also includes temperature compensation circuitry, a signal amplifier, a dynamic offset cancellation system, a Schmitt trigger, and an open-collector output. It also includes an output clamp diode and power supply reverse protection, which enhances the robustness of the Hall IC.

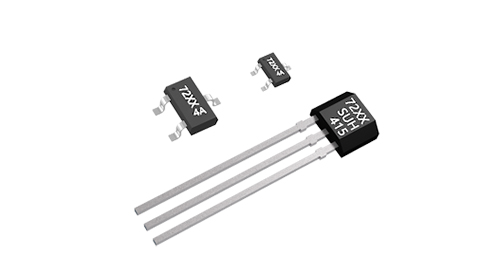

The MT72XX series offers customers a variety of packages: SOT-23 and SOT-23 (small package) for surface mount and flat TO-92 for through-hole mount. All packages are RoHS compliant.
Product Features
• Sampling frequency (Hz)：25K
• type：Unipolar switch
• Working voltage (V)：2.8~26
• Power consumption (mA)：2.5
• Working temperature (℃)：-40~150
• Working points (Gs)：255
• Release points (Gs)：210
• Output format：Open drain output
• Automotive level certification：AEC-Q100
• Output status corresponding to BOP situation：Low
• Packaging：Small SOT-23, SOT-23, Flat TO-92
For more product information, please contact us.
