The MT836X-HX series is produced using the BCD process for high performance and high reliability. Inside the Hall lC is an on-chip Hall voltage generator, a voltage regulator for 3.8V to 60V supply voltage operation, a temperature compensation circuitry, a small signal amplifier, a Hall lC with a dynamic offset cancellation system, a Schmitt trigger, and an open-collector output. It also includes a clamping diode at the output and reverse power protection to enhance the robustness of the Hall IC.
Product Features
• Sampling frequency (Hz)：200K
• type：Latch switch (horizontal sensing)
• Working voltage (V)：3.8~60
• Power consumption (mA)：4.0
• Working temperature (℃)：-40~150
• Working points (Gs)：35
• Release points (Gs)：-35
• Output format：Open drain output
• Automotive level certification：AEC-Q100

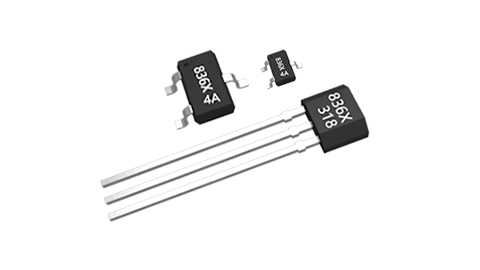

• Packaging：Small SOT-23, Flat TO-92
For more product information, please contact us.
