The MT8632-3D is CMOS processed, which provides high performance and high reliability. A Hall sensing element is integrated into the chip. 2V~5.5V working voltage, 1uA ultra-low power consumption, and excellent temperature compensation ability, so that the chip can work in the environment of -40~125°C, and maintain excellent performance and consistency.
Product Features
• type：All pole switch (3D induction)
• Sampling frequency (Hz)：20
• Working voltage (V)：2.0~5.5
• Power consumption (uA)：1.2
• Working temperature (℃)：-40~125
• Working points (Gs)：±15
• Release points (Gs)：±9
• Output format：Push pull output
• Automotive level certification：-

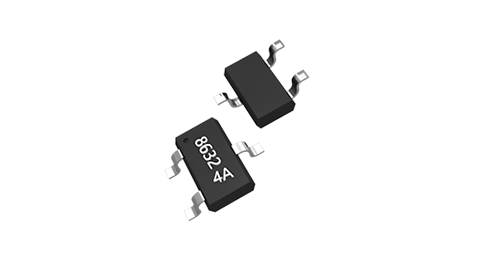

• Packaging：SOT-23
For more product information, please contact us.
