The MT8822 is CMOS processed, which has high performance and high reliability. A Hall sensing element is integrated into the chip. 1.6V~5.0V working voltage, 1.7uA ultra-low power consumption, and excellent temperature compensation ability, so that the chip can work in the environment of -40~85°C, and maintain excellent performance and consistency.
Product Features
• type：Latch switch
• Sampling frequency (Hz)：20（Ctrl=1；1.2KHz）
• Working voltage (V)：1.6~5.0
• Power consumption (uA)：1.7
• Working temperature (℃)：-40~85
• Working points (Gs)：20
• Release points (Gs)：-20
• Output format：Push pull output
• Automotive level certification：-

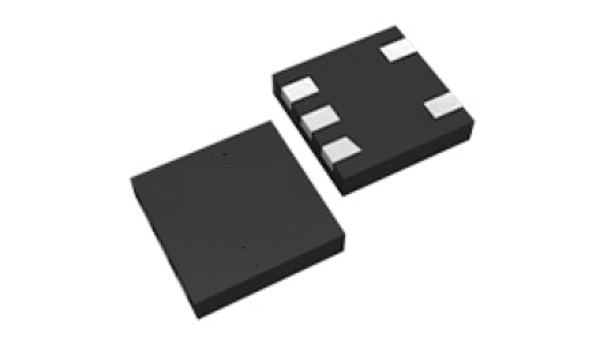

• Packaging：DFN1616
For more product information, please contact us.
