High-precision, Low-power I2C Digital Interface Temperature and Humidity Sensor
NSHT30 is a CMOS-MEMS-based relative humidity (RH) and temperature sensor. NSHT30 integrates a complete sensor system on a single chip, including capacitive relative humidity sensor, CMOS temperature sensor and signal processor and I2C digital communication interface, in the DFN and LGA packages of 2.5mm*2.5mm*0.9mm. The communication mode of its I2C interface, extremely small package and low power consumption characteristics allow NSHT30 to be more widely integrated into a variety of applications. In addition, NSHT30's I2C interface features two unique, selectable I2C addresses, communication rates up to 1MHz, and a wide voltage operating range, making NSHT30 more compatible in a variety of application environments. It also has programmable interrupt thresholds that can provide alarms and system awakenings without the need for a microcontroller to continuously monitor the system.
Product Features
• Relative humidity (RH) sensor：
- Working range：0%RH~100%RH
- Accuracy：±3%RH（typ.）
• Temperature sensor：
- Operating temperature range：-40℃~125℃
- Accuracy：±0.3℃（typ.）
• Digital output for relative humidity and temperature compensation
• Wide supply voltage range：2.0V~5.5V
• I2C digital interface, communication rate up to 1MHz
- 2 optional addresses
- Data protection with CRC check
• Low-power：average current: 3.2μA

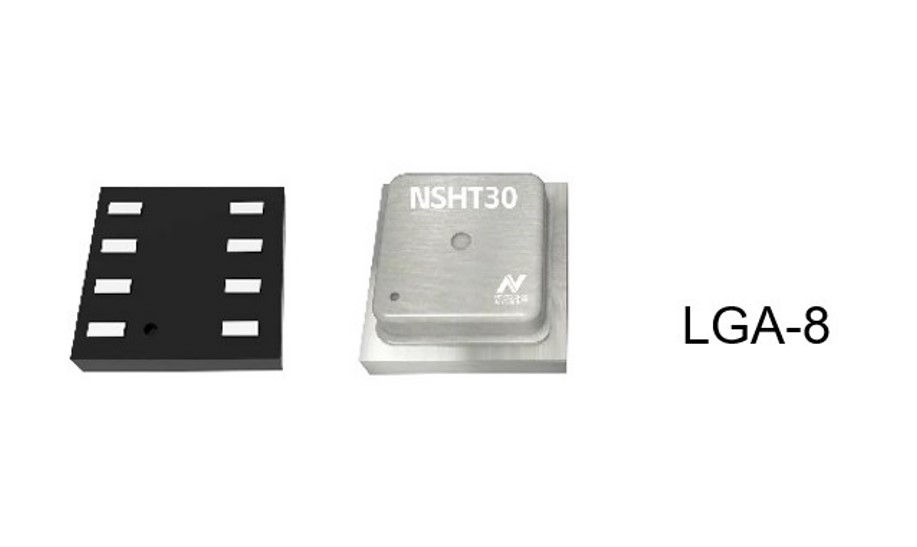

• 8-Pin LGA and DFN package available
Application
• Humidifier/dehumidifier
• White goods
• Intelligent constant temperature and humidity controller
• Ventilators
• Smart agriculture
• Cold chain logistics
• Hygrograph
• Automobile intelligent fog removal system
Functional Block Diagram
