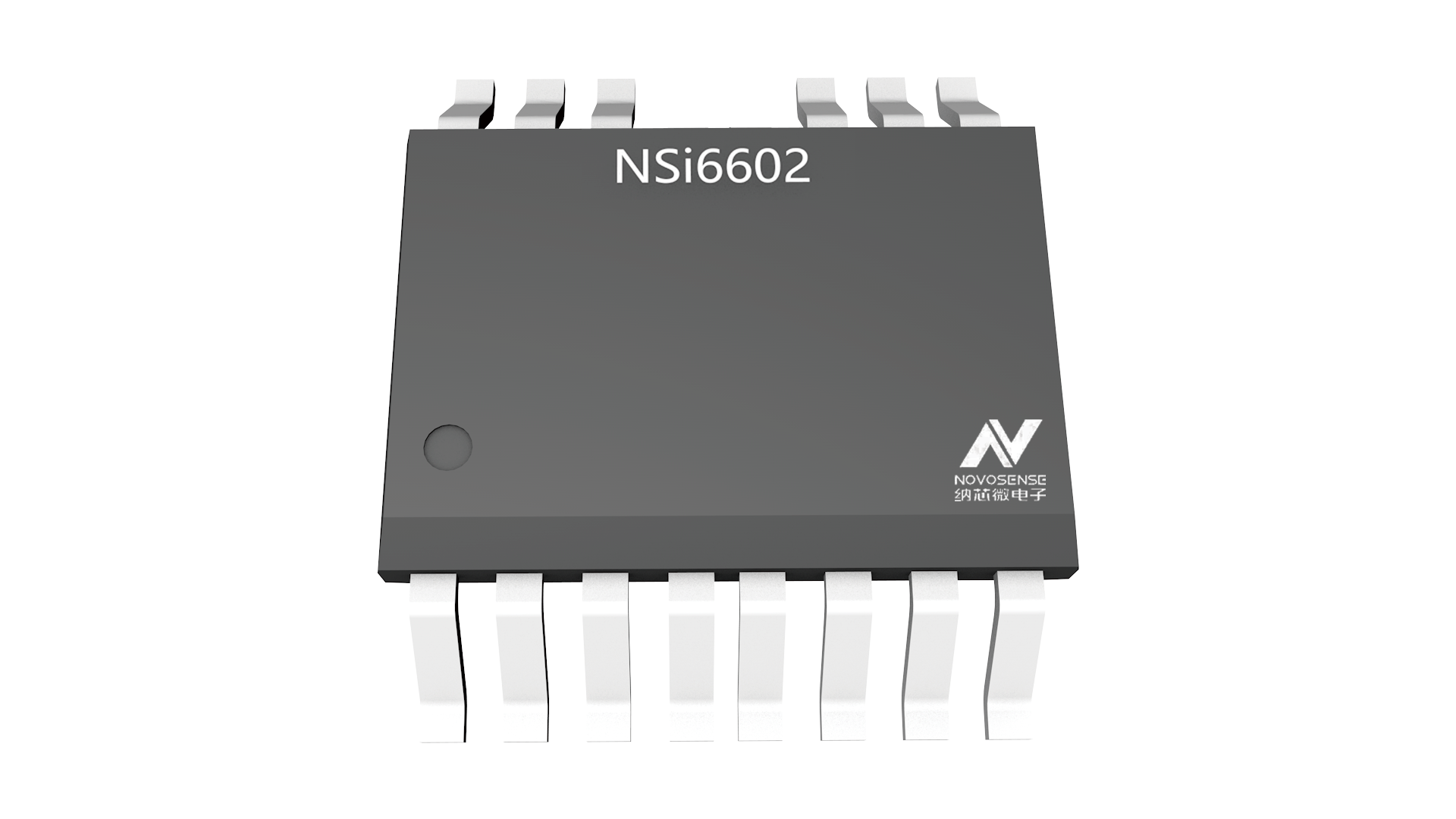

High-reliability Isolated Dual-channel Gate Drivers with DT Pins

•  Isolated dual channel driver

•  Input power supply voltage:  2.7V to 5.5V

•  Driver side power supply voltage: up to 28V with UVLOV

•  Peak source and sink current: 4A/6A

•  High CMTI: ±100KV/μs

•  Typical propagation delay: 19ns

•  Maximum delay matching: 5ns

•  Maximum pulse width distortion: 6ns

•  Programmable dead time

•  Acceptable minimum input pulse width: 20ns

•  Operation temperature: -40℃~125℃

•  Package form: LGA13 (4*4mm), LGA13 (5*5mm), SOW14, SOW16, SOP16

• UL1577 certification:

   LGA13: 2.5kVrms for 1 min.

   SOW14: 5.7kVrms for 1 min.

   SOW16: 5.7kVrms for 1 min.

   SOP16: 3kVrms  for 1 min.

•  CQC certification: Comply with GB4943.1-2011

•  CSA certification: Components comply with 5A

•  VDE certification: DIN V VDE V 0884-11:2017-1

• Isolated DC-DC and AC-DC power supplies in servers, telecommunications and industry

•  DC-AC PV inverter

•  Motor driver and EV charging

•  UPS and battery charger
