MT9363：Magnetic Current/Linear Hall Chips - Factory programmed linear Hall chips
The MT9363 series is a user-definable wake-up/sleep mode for low-voltage, low-power linear Hall-effect sensor chips. The chip can work at an ultra-low operating voltage of 1.7V~3.6V. In addition, by enabling SLEEP＞VINH, the chip enters normal operation mode, consumes 2mA, consumes 2mA, induction of unidirectional S-pole magnetic field output proportional signal.
The MT9363 series is ideal for many battery-powered applications because users can switch between sleep and operating modes via the SLEEP pin, which helps users further reduce overall power consumption. In sleep mode, multiple MT9363 chip outputs are allowed to share a single ADC interface because the output enters a "high-impedance state".
The output of the MT9363 series is proportional based on the VREF pin, and when there is no magnetic field, VOUT = 6.47%VREF, so it is independent of power supply.
Product Features
• type：Linear simulation allows users to customize sleep mode
• Working voltage (V)：1.7-3.6
• Bandwidth (KHz)：10
• Working temperature (℃)：-20~85
• Sensitivity (mV/A)：3.78
• Working power consumption (mA)：2
• Sleep power consumption (mA)：0.05

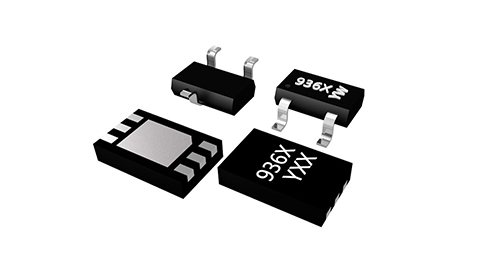

• Packaging：DFN2030,SOT-23
For more product information, please contact us.
