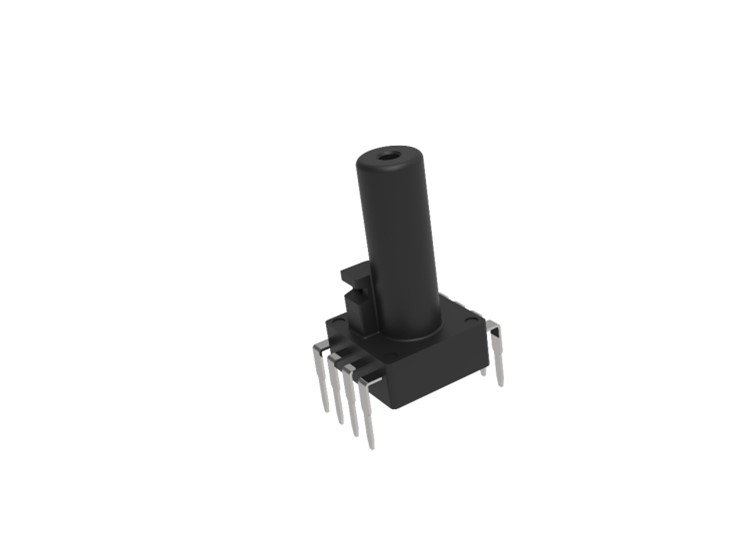

Integrated Gauge Pressure Sensor with Air Nozzle in DIP8 Package

NSPGD1 is a series of calibrated gauge pressure sensors launched by NOVOSENSE for the home appliance and medical market. The series of products adopts high-performance signal conditioning chip to calibrate and compensate the temperature and pressure of MEMS piezoresistive die output. The NSPGD1 series integrated pressure sensor has an optional pressure range from -10kPa-10kPa. It adopts DIP8 package form with air nozzle, which is convenient for soldering and use. It is suitable for gauge pressure detection of non-corrosive gases compatible with pressure sensitive components, especially for non-contact liquid level detection. It is also suitable for industrial, IoT and other fields. This series pressure sensor supports analog output /I2C digital output and unique frequency output, which is more flexible for multi-applications.

Product Features

•  Customizable range: -10kPa ~ +10kPa

•  Wide temperature range: 0℃~70℃

•  The comprehensive accuracy in the full temperature range is better than ± 2.5%

•  Analog voltage /I2C digital output/frequency output

•  High stability, 100% calibration, temperature compensation

•  DIP package with air nozzle, easy to install and seal

•  Front air intake for chips avoid blockage

•  Internal waterproof moisture-proofing treatment

•  Package;DIP-8 (10.4mm x 10.4mm)



Application

•  Home appliances: washing machine, dishwasher, coffee machine and water purifier etc.

•  Industrial: pressure switch, negative pressure vacuum detection and gas pressure detection

•  Medical treatment: ventilator, oxygen generator, anesthesia apparatus, biosafety cabinet

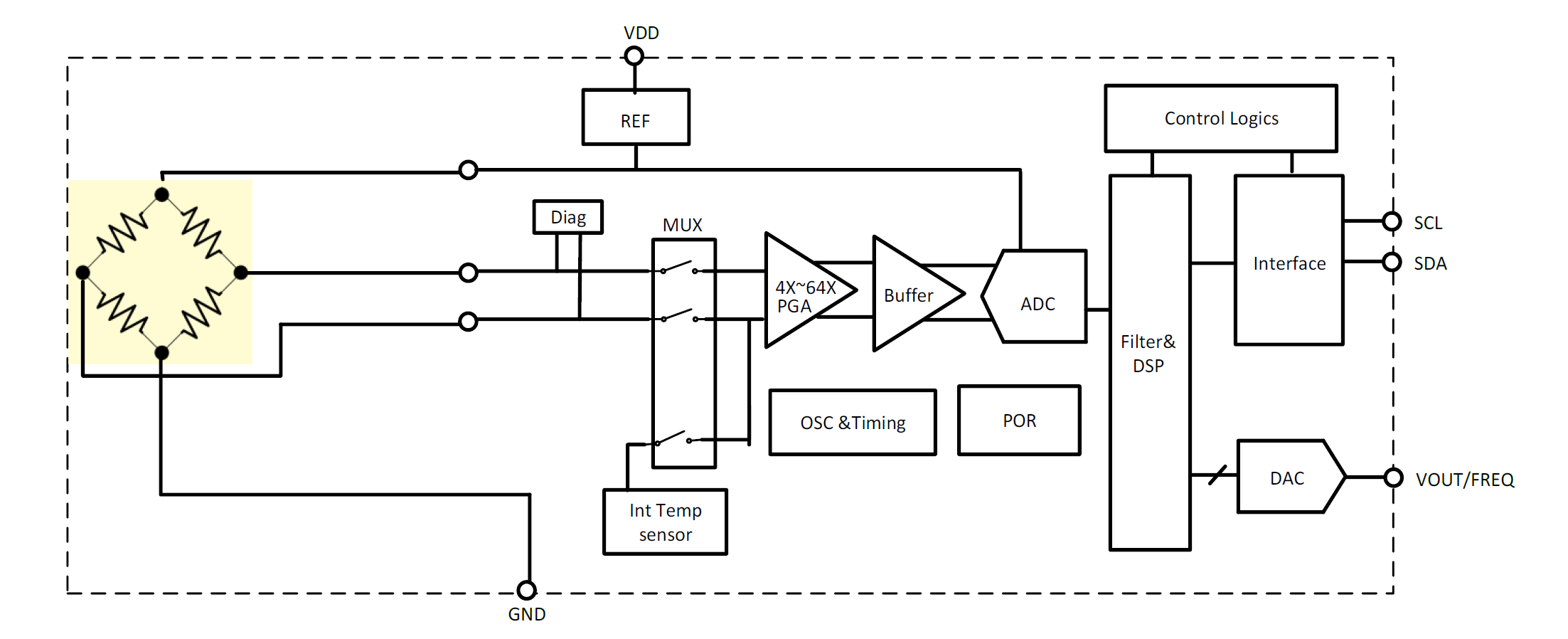

Functional Block Diagram


 I2C output

For more product information, please contact us.
