Dual-nozzle Integrated Differential Pressure Sensor

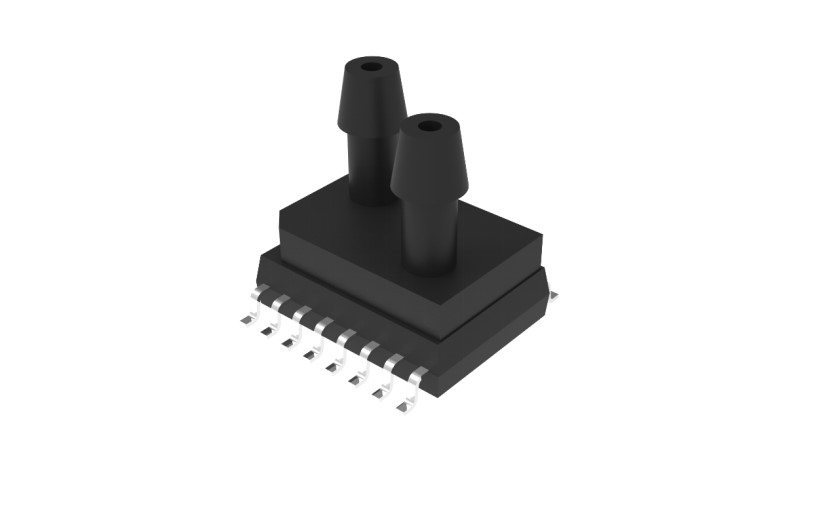

The NSPDS7 is a calibrated pressure sensor launched by NOVOSENSE for the differential pressure monitoring market. The series of products adopts high-performance signal conditioning chips to calibrate and compensate the temperature and pressure of advanced MEMS piezoresistive die. JEDC-standard SOIC-16 package with double vertical barb air nozzle is adopted for convenient soldering and use. The NSPDS7 series integrated pressure sensors have an optional pressure range ±500Pa~±250kPa, which are suitable for the pressure detection of non-corrosive gases compatible with the structural materials of pressure sensing elements, and also for consumer, medical, industrial and IoT fields. This pressure sensors supports analog output /I2C digital output and can be installed directly on standard printed circuit boards for multi-applications.
Product Features
• Supply voltage: 3V~5.5V
• Operating temperature range: -20℃~70℃
• High accuracy in full temperature range, and customizable pressure range
- NSPDS7：±500Pa~±250kPa，±1%F.S.
• Optional output mode (analog /I2C digital output)
• High stability, 100% calibration, temperature compensation
• Dual vertical barb air nozzle package, easy to install and seal
• Package: SOIC-16 (7.5mm x 10.3mm)
Application
• Industrial: fire residual pressure monitoring, HVAC/VAV, pressure transmitter, pressure switch, negative pressure vacuum detection, gas flow monitoring
• Medical: ventilator, sphygmomanometer, oxygen generator, anesthesia apparatus, biosafety cabinet
