Automotive 55V Four-channel Low-side Relay and Solenoid Driver IC
NSD5604N-Q1 is a 4-channel low-side driver IC. The product integrates 4-channel low-side NMOSFET to drive resistive, capacitive or inductive loads. The 4 channels can be turned on at the same time and each channel can support a load current of greater than 500mA. Each channel of the product supports independent overcurrent protection. The IC also integrates active clamp and freewheeling diodes, by working with external TVS, different current attenuation modes including slow attenuation and fast shutdown can be realized for inductive load.
Product Features
• Wide operating voltage range: 8V~50V (withstand voltage of 55V)
• On-resistance of 260m Ω
• Peak current 3.0A
• Supporting EFT frequency
• LDO supports transmission voltage of 5V-20mA
• Integrated active clamp and freewheeling diode
• Configurable current limit point and overcurrent protection
• Undervoltage protection
• Operating temperature: -40°C~125°C

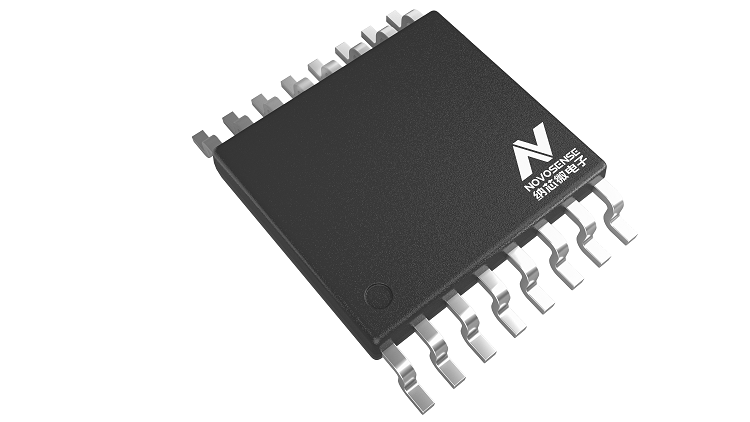

• Package: HTSSOP16
Application
• Industrial automation
• Industrial machinery
• Digital machine tools
• General resistive/capacitive/inductive loads
Functional Block Diagram
