NS800RT5037/5039/5049/3025: Mid-Range Computational Real-Time Microcontroller (MCU)
The NS800RT5037/5039/5049/3025 is equipped with a Cortex M7 core running at 200~260MHz, paired with our proprietary eMath floating-point math acceleration core, enabling rapid loop control and efficient real-time computational performance. High-speed, high-precision ADCs, 100ps high-precision PWM, dedicated PWM event manager, and fast interaction with high-speed comparators ensure precise control in every high-speed loop.

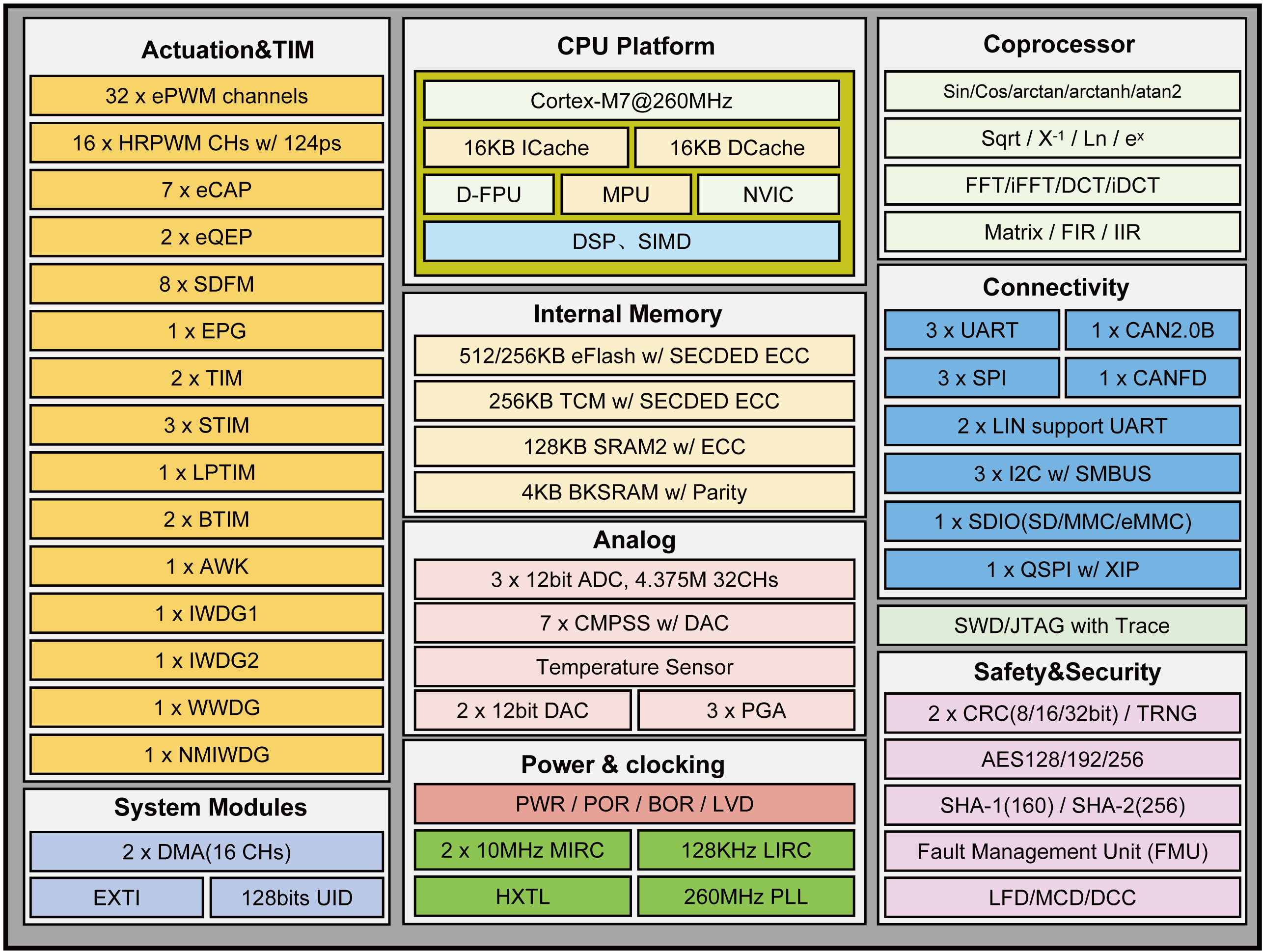

Product Features
• 200~260MHz Cortex M7 core with 32KB on-chip cache
• eMATH support for various floating-point trigonometric operations, FFT, convolution, and matrix operations
• 512KB Flash (with ECC), 388KB SRAM (with ECC), including 256KB TCM
• 2*16-channel DMA, with DMA support for UART
• 3*12-bit ADCs, up to 5Mbps, with a maximum of 32 channels
• 7*2 fast comparators
• 2*12-bit DACs
• 3 high-bandwidth differential amplifiers
• Up to 32 PWM channels, 16 with 100ps high-precision PWM
• 7 high-speed capture pins, 2 QEP interfaces
• 8 Sigma-Delta filters
• 3 UARTs, 2 high-speed UARTs/hardware LIN interfaces, 1 CAN-FD, 1 CAN 2.0, 3 I2Cs, 3 SPIs, 1 QSPI, 1 SDIO
• AES128/192/256 support, SHA-1/SHA-2 encryption capabilities
• True random number generator support
• Secure boot support
• IEC60730 safety certification
• AEC-Q100 Grade 1 design compliant
• ISO26262 ASIL-B and IEC61508 SIL2 design compliant
• Available in industrial and automotive-grade variants
Application
• Solar energy
• Renewable energy storage
• Servo controllers
• AC inverters and variable frequency drives
• On-board chargers (OBC)
• Air conditioning compressor control
• Telecommunications, and server power supplies
For more product information, please contact us.
