NSOPA910xQ: High Voltage General Purpose Operational Amplifiers

• Wide supply: ±1.35 V to ±20 V, 2.7 V to 40 V

• Low offset voltage: 200μV typ

• Low offset voltage drift: ±0.3 μV/°C typ

• Quiescent current: 2.5 mA per amplifier

• Unity-gain stable

• AEC-Q100 qualified for automotive applications

• Gain-bandwidth product: 11.6 MHz

• High slew rate: 35 V/μs typ

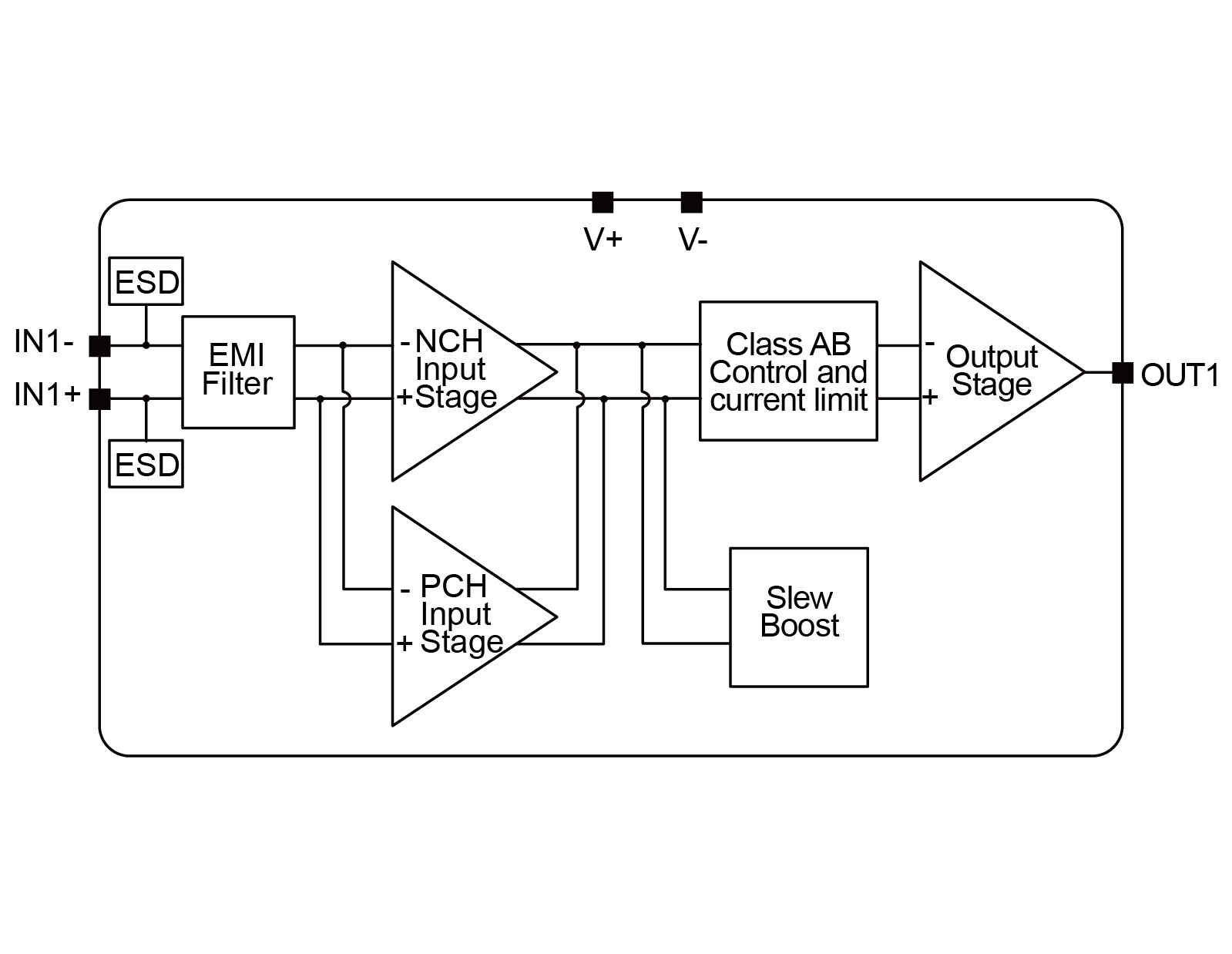

• Robust EMIRR performance: EMI/RFI filters on input and supply pins

• Differential and common-mode input voltage range to supply rail Pulse-friendly/comparator inputs 1 Amplifier operates with differential inputs up to supply rail 2 Amplifier can be used in open-loop or as comparator

• Extended temperature range: –40°C to 125°C

• Multiplexed data-acquisition systems

• Test and measurement equipment

• ADC driver amplifiers

• SAR ADC reference buffers

• Programmable logic controllers

• High-side and low-side current sensing
