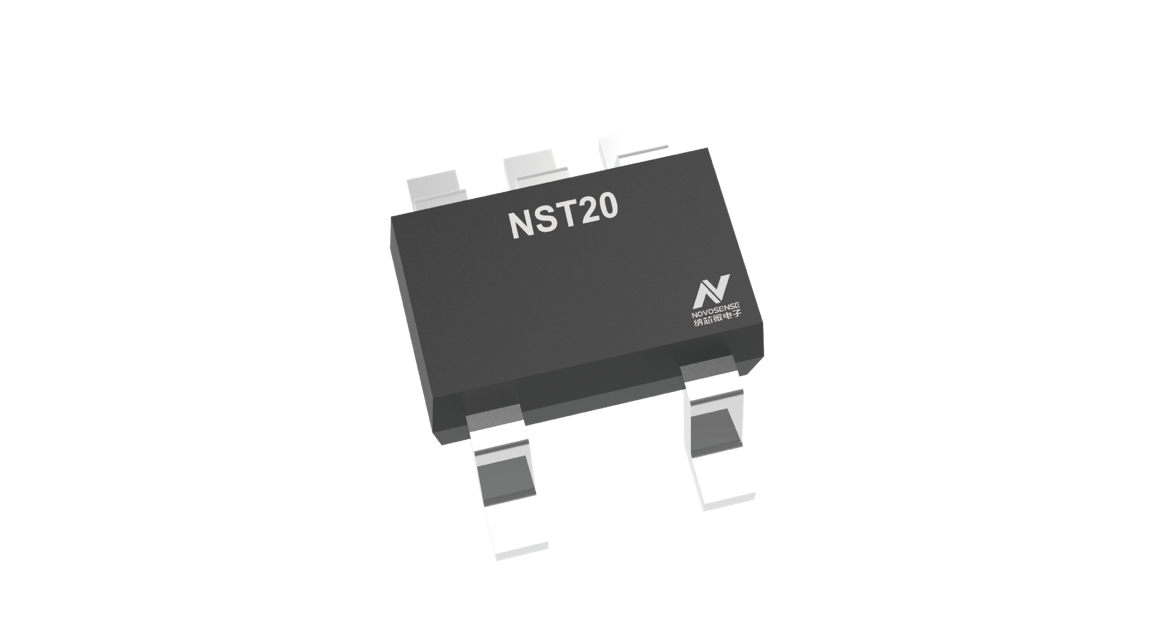

High-precision and Low-power Analog Output Temperature Sensor

NST20 is a series of precision CMOS integrated circuit linear analog output temperature sensor. Input voltages range is from 2.4V to 5.5V. The maximum temperature error in the whole temperature range is within ±2.5℃. 20μA typical operating mode current and 0.1μA typical turn-off current can greatly reduce the power loss of battery-powered equipment. Class-AB output drivers provide a powerful maximum output of 500µA, which can drive capacitive loads up to 1000pF, and can be directly connected to the ADC sample-hold input end. With excellent accuracy and a powerful linear output driver, the NST20 analog output temperature sensor is an extremely cost-effective alternative to passive thermistors.


Product Features

•  Operating temperature range:

   - NST20: -55℃~ 130℃

•  High accuracy: ±1.5℃ (typical)

•  Wide input voltage range: 2.4V~5.5V

•  Output drive capacity:500μA

•  Output short circuit protection

•  Analog output parameter:

   - NST20: -11.77mV/℃ negative slope output

•  Low static current:

   - Operating mode current 20μA (typical)

   - Turn-off current  0.1μA (typical)

Application

•  Smart phones, computers, fax machines, printers, etc.

•  Automotive infotainment system

•  Portable medical device

•  Industrial automation and control

•  Wireless and telecommunications infrastructure

•  Grid infrastructure

•  Environmental monitoring and HVAC

•  Electronic testing equipment

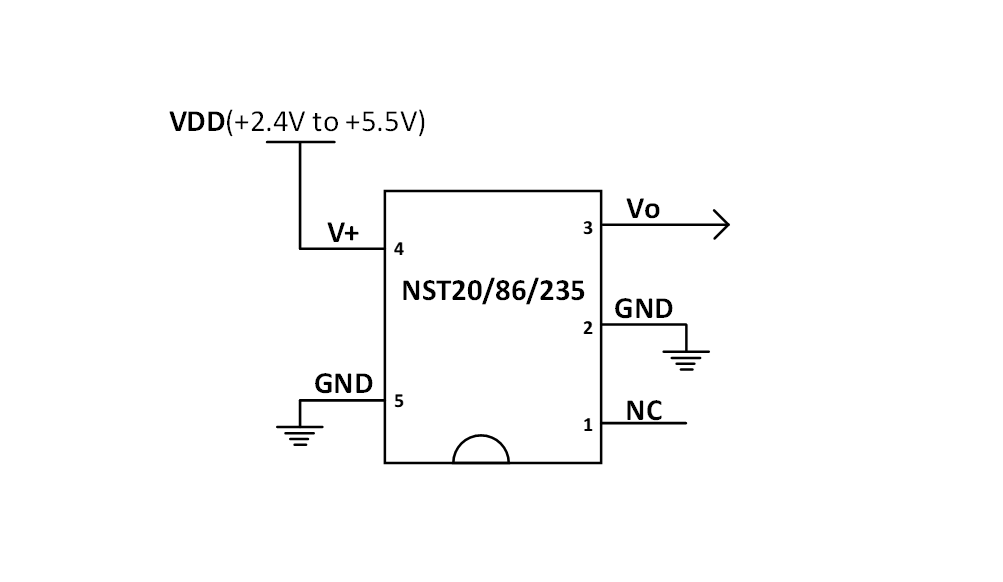

Functional Block Diagram
