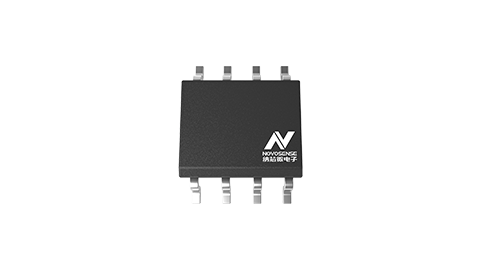

Fault Protected High-Speed CAN FD Transceiver with Standby Mode
The NCA1042B is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The NCA1042B implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. The NCA1042B provides thermal protection and transmit data dominant time out function.
Product Features
Fully compatible with the ISO11898-2 standard
Ideal passive behavior to the CAN bus when the supply voltage is off
I/O voltage range supports 3.3V and 5V MCU
Power supply voltage
VIO: 2.8V to 5.5V
VCC: 4.5V to 5.5V
Bus fault protection of -70V to +70V
Bus common-mode voltage of -30V to +30V
Transmit data (TXD) dominant time out function
Bus dominant time out function in standby mode
Very low-current Standby mode with wake-up capability
Over current and over temperature protection
Data rate: up to 5Mbps
Low loop delay: <250ns
Operation temperature: -40℃ to +125℃
RoHS & REACH compliant
Application
CAN bus standards such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783 and CANaerospace
Highly loaded CAN networks down to 10 kbps networks using TXD DTO
Industrial automation, control, sensors, and drive systems
Building, security, and climate control automation
Functional Block Diagram
