The MT1401-EN uses BCD process for high performance and reliability. A Hall sensing element is integrated into the chip. Working voltage (2.8V~24V), good reverse voltage protection ability and overcurrent protection ability, sampling frequency of 400KHz. And it has excellent temperature compensation ability, so that the chip can work in the environment of -40~150°C, and maintain excellent performance and consistency.
Product Features
• type：Latch switch
• Sampling frequency (Hz)：400K
• Working voltage (V)：2.8~24
• Power consumption (mA)：2.3
• Working temperature (℃)：-40~150
• Working points (Gs)：24
• Release points (Gs)：-24
• Output format：Open drain output
• Automotive level certification：-

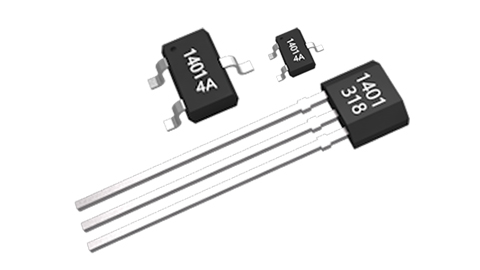

• Packaging：Small SOT-23, SOT-23, Flat TO-92
