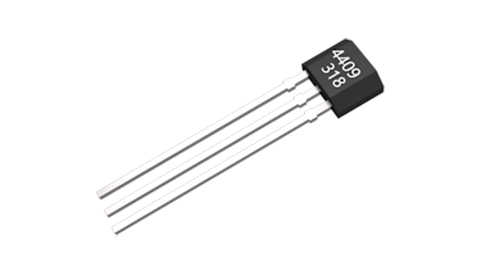

MT4409-EN:Magnetic Switch Position Detection Chip - Low Voltage High Speed Series

The MT4409-EN uses BCD process for high performance and reliability. A Hall sensing element is integrated into the chip. Working voltage (2.8V~24V), good reverse voltage protection ability and overcurrent protection ability, sampling frequency of 400KHz. And it has excellent temperature compensation ability, so that the chip can work in the environment of -40~150°C, and maintain excellent performance and consistency.

Product Features

• type:Latch switch

• Sampling frequency (Hz):400K

• Working voltage (V):2.8~24

• Power consumption (mA):4.25

• Working temperature (℃):-40~150

• Working points (Gs):45

• Release points (Gs):-45

• Output format:Open drain output

• Automotive level certification:-

• Packaging:Flat TO-92


For more product information, please contact us.
