NSD10151/9 is single channel low side gate driver, suitable for driving MOSFETs, IGBTs, and SiC power devices. NSD10151 is automotive grade, while NSD10159 is industrial grade. Both products can provide strong driving capabilities, fast rise and fall time, short propagation delay, and are suitable for various high - frequency switching applications.
Product Features
- Supply voltage range: 4.7V to 32V（NSD10159），13V to 32V（NSD10151），
- Source/sink drive current: 3.5A/4A（NSD10159），2A/4A（NSD10151）
- Rise time/fall time(typ.)：9ns/8ns（NSD10159），17ns/8ns（NSD10151）
- Input to output propagation delay (typ.)：25ns（NSD10159），32ns（NSD10151）
- UVLO function
- EN function
- Operating temperature range: -40°C~125°C
Application
- SMPS boost PFC
- HEV/EV PTC controller

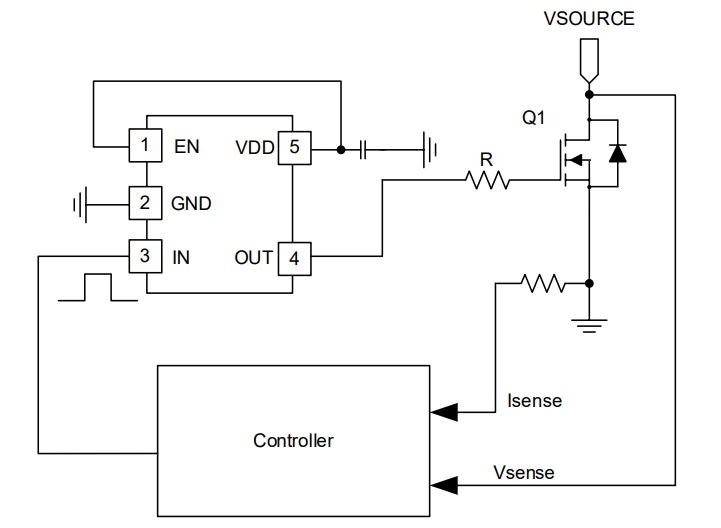

Functional Block Diagram
NSD10151：
NSD10159：
For more product information, please contact us.
