NSPGM1 series is a calibrated differential pressure sensor launched by NOVOSENSE for automotive fuel vapor pressure detection and exhaust differential pressure detection. The product adopts automotive-qualified signal conditioning chip to calibrate and compensate the MEMS die output, which can convert pressure signals in a specific range into analog output voltage. This product can provide standard output in the temperature range from -40℃ to 90℃ without customer calibration, which can accelerate the process of product development and mass production.
The NSPGM1 series has an optional pressure range from -6kPa to 6kPa, support analog ratio-metric/absolute output. The module package is convenient for usage and flexible for multi-applications. It is not only suitable for automobile fuel steam pressure detection, but also suitable for industrial control and instrumentation and other fields.
Product Features
• Operating temperature range: -40℃~90℃
• Pressure range -6kPa ~ +6kPa, which can be customized
• The comprehensive accuracy in the full temperature range is better than ±2.5%F.S.
• Support 5V power supply and direct power supply within 18V in absolute voltage output mode
• Support -24V to 28V over voltage and reverse voltage protection
• Fluorinated gel protection, compatible with oil and gas environment
• Support absolute output/proportional output, with output curve customized
• It can be calibrated many times, with the function of factory reset adjustment

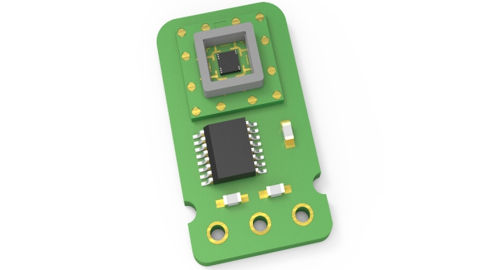

• Package: ceramic substrate module package (13.1mm x 23.1mm)
Application
• Automotive: FTPS fuel steam pressure detection, crankcase ventilation pressure sensor
• Industrial: negative pressure vacuum detection, gas pressure monitoring
For more product information, please contact us.
