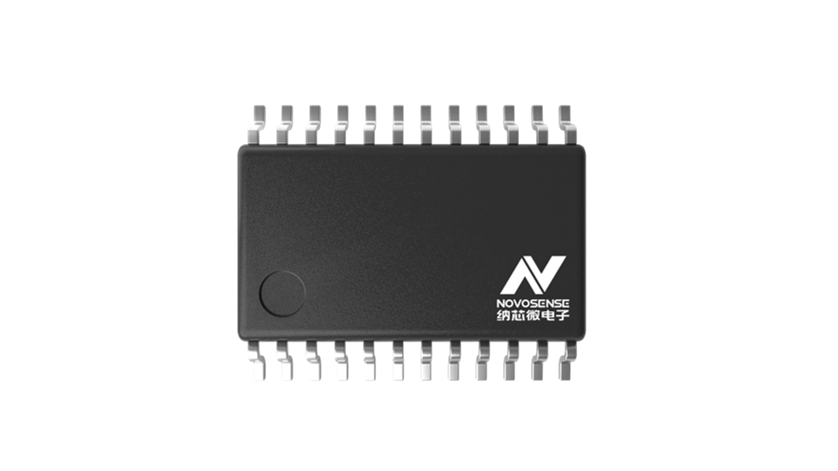

NSL21912：20V/12-Channel Automotive High-side Linear LED Driver
NSL21912 is an automotive high-side LED driver with a supply voltage range of 3.8V to 20V and a current output capability of 100mA per channel. The device supports 2-bit global and 6-bit individual current settings, and flexible 12-bit PWM dimming.NSL21912 features a low dropout voltage requirement (700mV Max.@50mA) and supports automatic thermal sharing via VS shunt resistors, providing excellent thermal performance. NSL21912 supports multiple regulations along with LED open-circuit, short-to-ground, and single LED short-circuit diagnostics. It integrates a configurable watchdog and programmable EEPROM, allowing NSL21912 to flexibly configure fail-safe mode for different applications when the MCU connection is lost.NSL21912 supports the UART-based digital interface for a wide range of control and diagnostic features, with a maximum of 16 NSL21912 devices on a single bus.
Product Features
• Qualified for Automotive Grade 1: Tj from -40C to 150C
• 3.8V~20V supply voltage range
• 12-channel high side current sources
• 100mA output current capacity per channel
• 12-bit independent PWM dimming
• Low dropout voltage(700mV max. at 50mA)
• Automatic thermal sharing via VS shunt resistors
• UART-based communcation interface(up to 2Mbps)
• Configurable LED open and LED short detect threshold
• Full protections and diagnostics
Application
• Automotive rear lighting
• Automotive exterior lighting
• General automotive body lighting applications
For more product information, please contact us.
