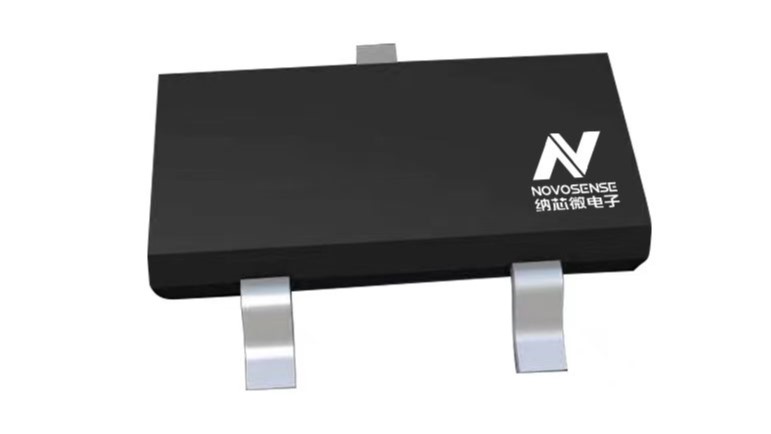

NSREF3120:High-precision, Low-tempco, Low-noise, Low-power Voltage Reference

The NSREF3120 is a family of precision, low power, low dropout, series voltage references available in the tiny 3-pin SOT23 package. The NSREF3120's small size and low power consumption make it ideal for portable and battery-powered applications. The NSREF3120 does not require a load capacitor, but is stable with any capacitive load and can sink or source up to ±10 mA of output current. Unloaded, the NSREF3120 can operate on supplies down to 1 mV above the output voltage. All models are specified for the wide temperature range of -40°C to +125°C.

Product Features

•  Auto and industry grade

•  Supply voltage: 1.8V~5.5V

•  Low dropout voltage: 1mV

•  Initial accuracy: 0.2%

•  Temp drift: 5ppm/℃ Type, 15ppm/℃ Max

•  Long-term drift: 100ppm(0 to 1000h at 35℃)

•  Output noise@2.5V: 22μVpp

•  Quiescent current @2.5V : 140 μA

•  Line regulation @2.5V :20ppm/V

•  High output current:10mA

•  -40℃ to 125℃


Application

•  Industry automation

•  Field instruments

•  SOLAR/UPS/BMS

•  Smart grid

•  Portable instruments

•  Medical

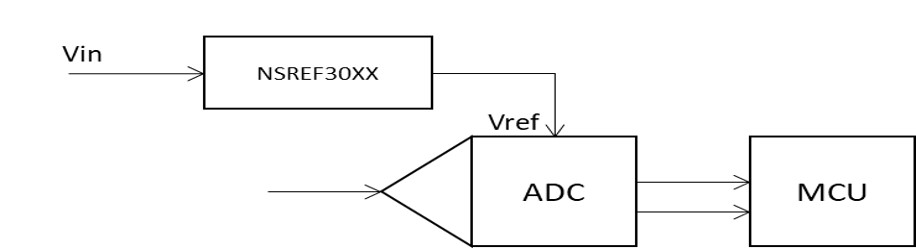

Functional Block Diagram
