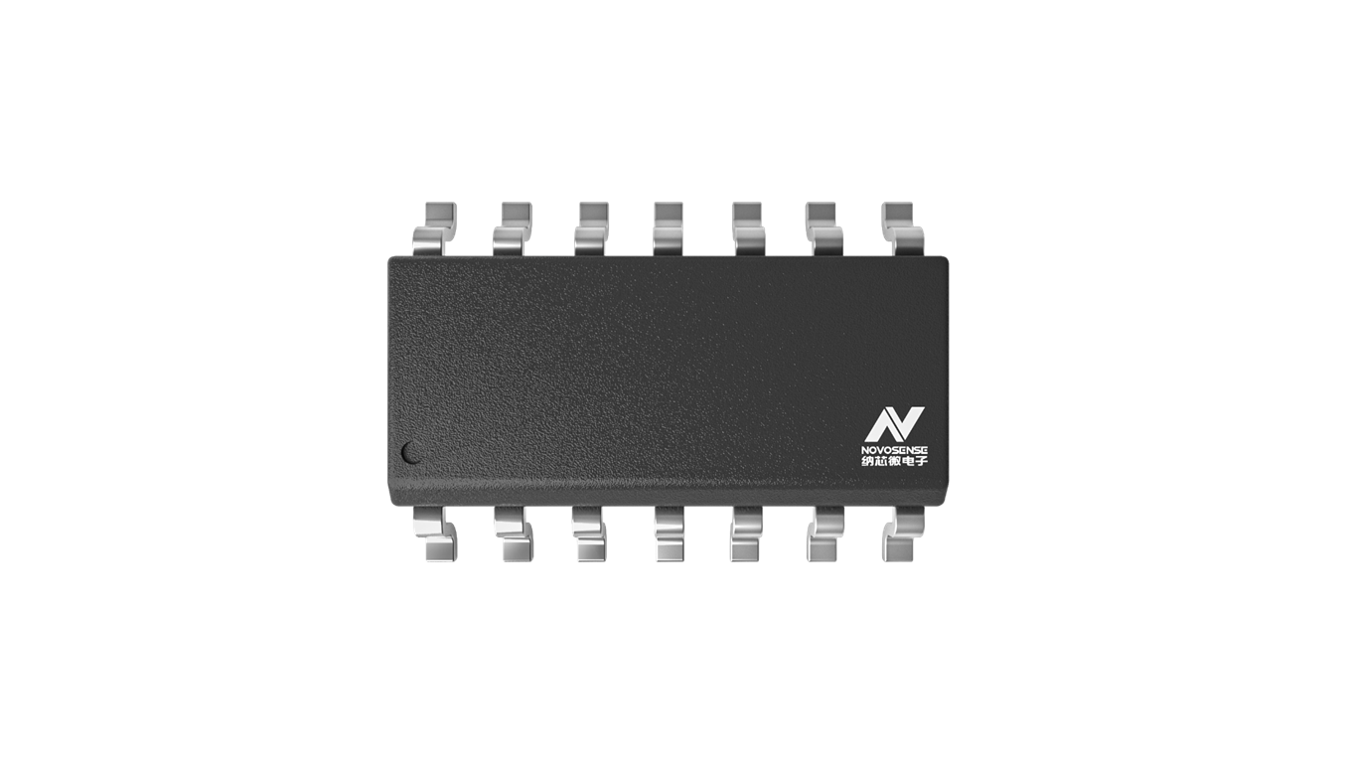

NCA1145-Q1-CAN Transceiver-NOVOSENSE Microelectronics
Product

Product

Fully compliant with ISO11898-2 standard

AEC-Q100: Qualified for automotive applications

I/O voltage range supports 3.3V and 5V MCU

Power supply voltage: VCC: 4.75V to 5.5V

VIO: 2.85V to 5.5V

VBAT: 4.9V to 28V

Very low-current Standby and Sleep modes

Remote wake-up via standard CAN wake-up pattern or via ISO 11898-2:2016 compliant selective wake-up frame detection

Bus fault protection: -58V to 58V

Overtemperature warning and shut-down

Data rate: up to 5Mbps

Operation temperature: -40℃~125℃

16- or 24- or 32-bit SPI communication

RoHS & REACH compliant packages

Automotive infotainment and cluster

Hybrid, electric and powertrain systems

Body electronics and lighting
